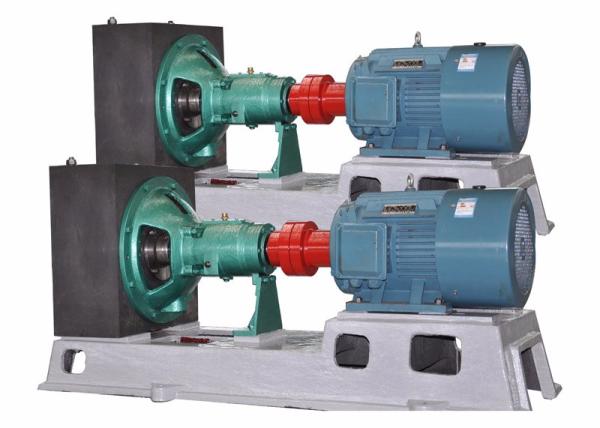

    Heavy Duty High Temperature Resistance Chemical Liquid Acid Transfer Pump

    Ask Lasest Price
    Brand Name : Chengdu Yongyi
    Model Number : DCS
    Certification : ISO9001
    Price : USD500-5000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 300 Sets/Month
    Delivery Time : 25 working days after receiveing advance payment
    • Product Details
    • Company Profile

    Heavy Duty High Temperature Resistance Chemical Liquid Acid Transfer Pump

    Heavy Duty High Temperature Resistance Chemical Liquid Acid Transfer Pump


    Application of Scope


    Mainly used in industries of chemical industry, petrochemical industry, oil refinery, coal chemical industry, power plant, paper making industry, pharmaceutical industry, sugar industry, food industry, steel plant, waste acid treatment, water supply and drainage, urban water supply, grain deep processing etc.


    Specification Range


    Model: DCS-seriescarbon fiber composite material pump

    Discharge Size:40mm~125mm

    Inlet Size:50mm~150mm

    Capacity:30~400m³/h

    Head:15~50m

    Maximal Efficiency:65%

    NPSH: 1.4m~3.5m

    Allowable Max Motor Power:280 kw

    Allowed Max Particle Size:20 mm

    Seal Type:mechanical seal/dynamic seal/packing seal

    Pump Weight:up to 1500kg

    RPM:1450r/min


    Material Characteristics


    Acid resistance: hydrofluoric acid, fluosilicic acid, hydrochloric acid phosphoric acid, nitric acid, dilute sulphuric acid, organic acid
    Application temperature: application temperature ranges from o to 130C, and differs from mediums
    Corrosion resistance: particle size < 20 mesh, solid content ≤ 50%
    Service life: its service life is three times as long as that of ordinary metal pump and non-mental pump


    Advantage


    Comparison to Other Material


    A contrast test between carbon fiber composite material and material 2507: under the same condition, medium: F, CI>800ppm, containing 12%sulfuric acid and 30%solid content, and its temperature is 90℃



    Flow Part Material


    Material CodeMedium Conditions
    MediumConcentrationTemperature
    TQ-3Sulfuric Acid<20%<120℃
    Sulfuric Acid<50<100℃
    Phosphoric Acid<55<100℃
    TQ-4Sulfuric Acid<40<120℃
    Phosphoric Acid<55<120℃
    Hydrochloric Acid<37<100℃
    Sodium BisulfateSaturated Solution<120℃
