PTFE Centrifugal Horizontal Chemical Volute Pump / Gland Packed Acid Transfer Pump Suction

Structure Feature

1. The ZA series pump is single-stage, horizontal radial split volute pump with foot support of high versatility. Bearing suspension components including shaft, impeller, shaft seal and pump cover, this can be disassembled only by disassembling the extension of the coupling, without removing the pipes and the motor.

2. The pump body is double volute if the diameter is more than 80mm, with small radial force, replaceable ring and flushable ring. The pump body and pump cover sealed by compressible metal gasket.

3. The replaceable pump body and impeller ring protect the wearable area. According to the working conditions, the axial force can be balanced by the front ring or the ring with balance hole. The residual axial force is absorbed by the thrust bearing.

4. The pump cover can be cooled and insulated. The shaft seal can be filled with coolant, flushing fluid and sealing fluid. The standard pipe is designed according to the API.

General Introduction

ZA series pump is single-stage, horizontal radial split volute pump with foot support of high versatility. The liquid is sucked from axial direction and is discharged vertically upside. The impeller has two typesincluding standard closed impeller and open impeller. The closed impeller has strong adaptability to working conditions and has the feature of high efficiency and low cavitation. The open impeller is suitable for conveying vapor-liquid and solid-liquid two-phase media. This kind of pump has many types of sealing, such as packing seal and mechanical seal.

Scope of Application

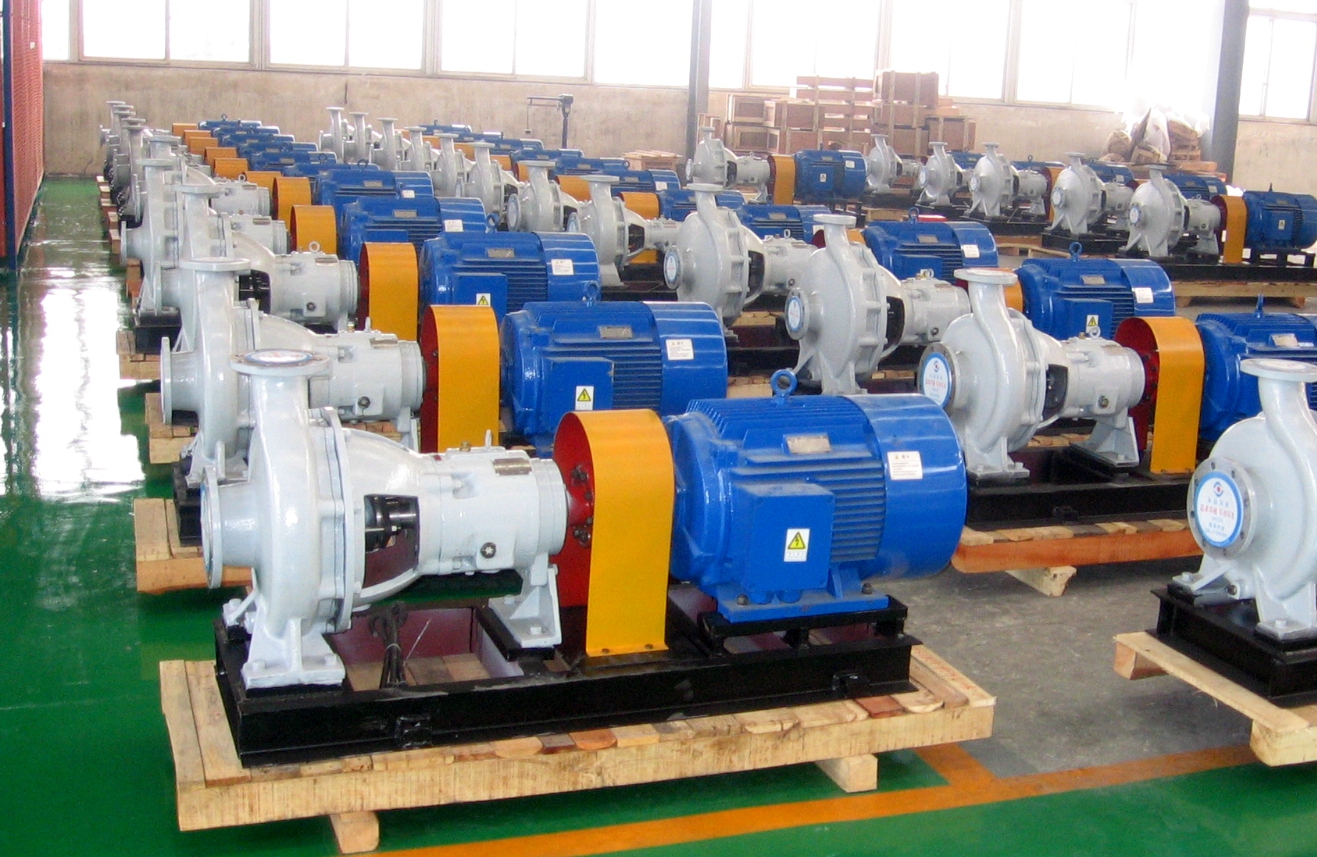

Product Stock

After sale service

1. One Year Warranty Period
2. Technical Supporting all the Time
3. Free Training

Chengdu Yongyi Pump Industry Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pumps and mixer for a wide range and variety of customers home and abroad. Chengdu Yongyi Pump Industry Co., Ltd is located in Chengdu, Sichuan province, China, about 50km to Chengdu Shuangliu International Airport and very close to China Railway Express.

Chengdu Yongyi Pump Industry Co., Ltd established in 1995, now, over 90% of our workers and engineers have many years of production experience, with production ability of 20 sets per day. They could finish the procedure of design, casting, machining, assembly and testing independently.

With main products of pumps and mixers, our products cover more than 1, 000 varieties in more than 10 series, including chemical process pump, slurry pump, vortex pump, desulfurization pump and agitators and many more. They are widely used in chemical, metallurgy, mineral, electricity, coal industry and so on.

The company has advanced design platform, using PRO / ENGINEER, SolidWorks and other three-dimensional software for product structure analysis; Has hydraulic machinery, casting and smelting, mechanical processing, heat treatment and other technical personnel, has multiple patent technologies, is a member unit of phosphorus and sulfur industry association, the key test platform and the joint base of Xihua university, has obtained the industrial design center granted by Chengdu city and high-tech enterprises in Chengdu and the big taxpayers of Chengdu Qingbaijiang district.

Through very stringent quality and enterprise audit procedure, we have passed ISO9001 international quality system authorization in 2015. Also finished Product Traceability System is adopted to ensure the product quality & production management.


Good management, cohesive team, good service system and rich experience give this company a solid foundation to continued development. New products are being on continually researched and developed to meet the demand of variable markets.

This competitive company strives forward to create value for the customers and satisfy various consumers' needs
