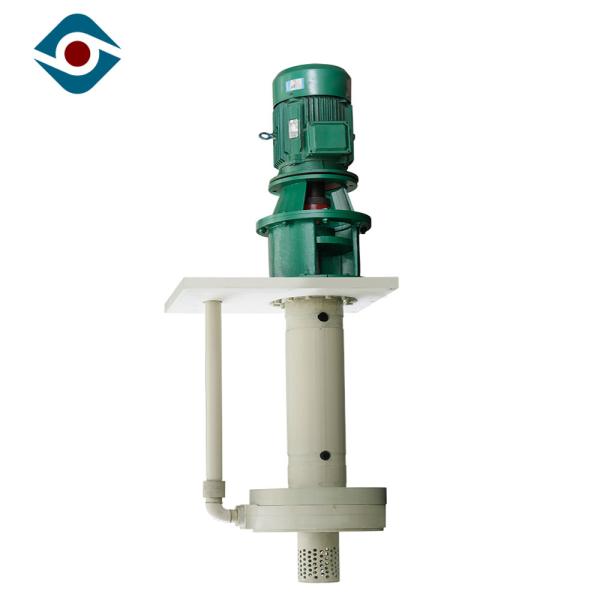

Vertical Submersible Centrifugal Pumps, Single Stage High Volume Turbine Sulphuric Acid Pump

    Buy cheap Vertical Submersible Centrifugal Pumps, Single Stage High Volume Turbine Sulphuric Acid Pump from wholesalers

    Buy cheap Vertical Submersible Centrifugal Pumps, Single Stage High Volume Turbine Sulphuric Acid Pump from wholesalers
    • Buy cheap Vertical Submersible Centrifugal Pumps, Single Stage High Volume Turbine Sulphuric Acid Pump from wholesalers
    • Buy cheap Vertical Submersible Centrifugal Pumps, Single Stage High Volume Turbine Sulphuric Acid Pump from wholesalers

    Vertical Submersible Centrifugal Pumps, Single Stage High Volume Turbine Sulphuric Acid Pump

    Ask Lasest Price
    Brand Name : Chengdu Yongyi
    Model Number : ZAL
    Certification : ISO9001
    Price : USD 500-5000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 300 Sets/Month
    Delivery Time : 25 working days after receiveing advance payment
    • Product Details
    • Company Profile

    Vertical Submersible Centrifugal Pumps, Single Stage High Volume Turbine Sulphuric Acid Pump

    Vertical Submersible Centrifugal Pumps, Single Stage High Volume Turbine Sulphuric Acid Pump


    Technical Data


    Model: ZAL-series vertical submerged centrifugal pump

    Discharge Size: 32mm~200mm

    Inlet Size: 50mm~250mm

    Capacity: 5~500 m³/h

    Head: 10 ~ 70 m

    Maximal Efficiency: 70%

    NPSH: 1.4m~4.5m

    Allowable Max Motor Power: 315 kw

    Allowed Max Particle Size: /

    Seal Type: packing seal

    Pump Weight:up to 3000kg

    RPM: 1450 r/min or 2900 r/min


    Advantages


    Deep Submerged Depth: ZAL-series Vertical Pumps offer solids pumping capabilities with high temperature resistance as well as extendable lengths up to 7 meters, when the submerged depth is over 2m, spindle structure will be used.


    Exact Design: Our vertical pumps are unique as they can be built to your exact design specifications offering you flexibility and peace-of-mind.


    Resistant to Corrosive: the vertical pumps are resistant to corrosive, harsh and caustic liquids making them suitable for all types of of scenarios including vertical water pump applications, sump pumps and tank pumps.


    Features


    1. Cantilevered shaft design
    2. Agitator option keeps solids in suspension
    3. Different length of the pump drive shaft or inhaled could be selected
    4. Material of Impeller could be wear-resistant metal or rubber
    5. V-belt drive, direct drive, and flexible coupling. Bearing to lubricate oils.

    Detail Image



    Performance Curve



    Flow Part Material


    We offer different kinds of anti-abrasive and anti-corrosive high-grade alloy materials to customers, like 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, hastelloy, K alloy, 20# alloy and Lewmet85# alloy


    Installation Dimension
