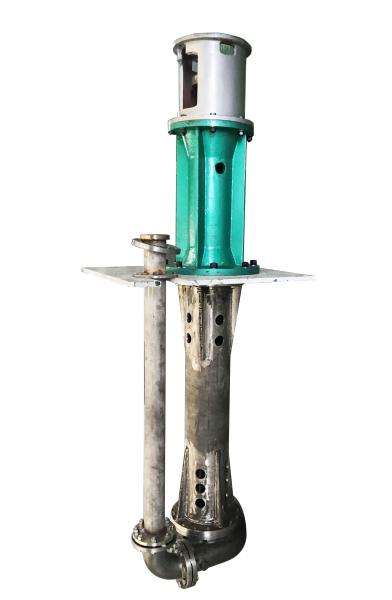

High Performance Multi Stage Vertical Cantilever Pump Centrifugal Pump With 380V/60Hz Electric Motor

Technical Parameter

Product Description

WDL-series pump is anti-abrasive and anti-corrosive vertical submerged centrifugal pump, which is designed according to multiphase flow theory and practice experience. WDL-series single stage single-suction pump is applicable to convey easy crystal medium containing solid particles, featured by excellent performance, advanced structure, good anti-cavitation properties, strong bearing, stable operation, easy maintenance and long service life.

Performance Data

Structure

Product Features

• The impeller is designed as a wide-flow impeller according to the principle of multi-phase flow, which is beneficial to the passage of solid medium without clogging. The impeller is designed with back blades, and the front back blades are used to prevent the medium from flowing back toward the pump inlet. The blades are used to reduce the axial leakage pressure and balance the axial force. The impeller is mounted on the shaft with a conical fit for easy assembly and disassembly. The impeller is fastened with impeller nut and locking screw.
• The pump body and the pump cover constitute a liquid flow working chamber inside the pump, which can convert most of the kinetic energy into static pressure energy. The horizontal axial suction and tangential discharge can reduce the hydraulic loss of the flow in the pump body. The pump body is connected to the sputum tube through an elbow and is connected to the bearing body through the support tube.

Product Picture

FAQ


1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.

Chengdu Yongyi Pump Industry Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pumps and mixer for a wide range and variety of customers home and abroad. Chengdu Yongyi Pump Industry Co., Ltd is located in Chengdu, Sichuan province, China, about 50km to Chengdu Shuangliu International Airport and very close to China Railway Express.

Chengdu Yongyi Pump Industry Co., Ltd established in 1995, now, over 90% of our workers and engineers have many years of production experience, with production ability of 20 sets per day. They could finish the procedure of design, casting, machining, assembly and testing independently.

With main products of pumps and mixers, our products cover more than 1, 000 varieties in more than 10 series, including chemical process pump, slurry pump, vortex pump, desulfurization pump and agitators and many more. They are widely used in chemical, metallurgy, mineral, electricity, coal industry and so on.

The company has advanced design platform, using PRO / ENGINEER, SolidWorks and other three-dimensional software for product structure analysis; Has hydraulic machinery, casting and smelting, mechanical processing, heat treatment and other technical personnel, has multiple patent technologies, is a member unit of phosphorus and sulfur industry association, the key test platform and the joint base of Xihua university, has obtained the industrial design center granted by Chengdu city and high-tech enterprises in Chengdu and the big taxpayers of Chengdu Qingbaijiang district.

Through very stringent quality and enterprise audit procedure, we have passed ISO9001 international quality system authorization in 2015. Also finished Product Traceability System is adopted to ensure the product quality & production management.


Good management, cohesive team, good service system and rich experience give this company a solid foundation to continued development. New products are being on continually researched and developed to meet the demand of variable markets.

This competitive company strives forward to create value for the customers and satisfy various consumers' needs
