Self Priming Carbon Fiber Chemical Pump High Efficiency for Anolyte Catholyte Liquid

General Introduction

Chemical resistant pumps are highly effective and corrosion resistance because the wet part is made of chemical resistant material. Chemical process pump is the perfect tool to transferring a variety of dangerous chemicals from one place to another. It is effectie and safe.

Different business requires different chemical pumps for different tasks. It will also depend on the specific needs of the project you need completing, which is why we have such a wide variety of chemical pumps available. But our DCS-series pump can almost satisfy all your reuqirements.

DCS-series Pump

Carbon fiber composite material is our self-developed high-strength composite material, and has obtained national invention patent (patent number ZL201310597859.0, ZL201310343890.1). This material has excellent wear resistance and is free from almost all chemical corrosion, under certain conditions the material can be used at temperatures of up to 150 degrees.

Product Data

Discharge Size:40mm~125mm
Inlet Size:50mm~150mm
Capacity:30～400m³/h
Head:15～50m
Maximal Efficiency:65%
NPSH: 1.4m~3.5m

Invention Patent Certification

Features of New Carbon Fiber Composite Material

1. Reduce the cost of pump set and spare parts

2. Improve equipment reliability

3. Increase the interchangeability of components

4. Reduce maintenance costs

Advantage

Comparison to Other Material

A contrast test between carbon fiber composite material and material 2507: under the same condition, medium: F, CI>800ppm, containing 12%sulfuric acid and 30%solid content, and its temperature is 90℃

1. Metal materials have relatively low corrosion resistance and wear resistance

2. Metallic overcurrent components not only have chemical corrosion, but also complex electrochemical corrosion.

3. All kinds of colloidal substances and chemical corrosion products in the medium are attached to the metal overcurrent parts. Due to the difference of the standard electrode potentials, the potential imbalance is formed. The solubility of the dissolved substances changes when the inlet pressure of the pump suddenly decreases. Then there is concentration differential galvanic cell, resulting in electrochemical corrosion. When the quality of the fluid is worse, the phenomenon is more serious.

4. New carbon fiber compositematerials contain high-performance coupling agents with few free electrons on the surface, so there is no electrochemical corrosion.

5. New carbon fiber compositematerials has extremely high hardness and has higher wear resistance than bidirectional stainless steel due to SiC​

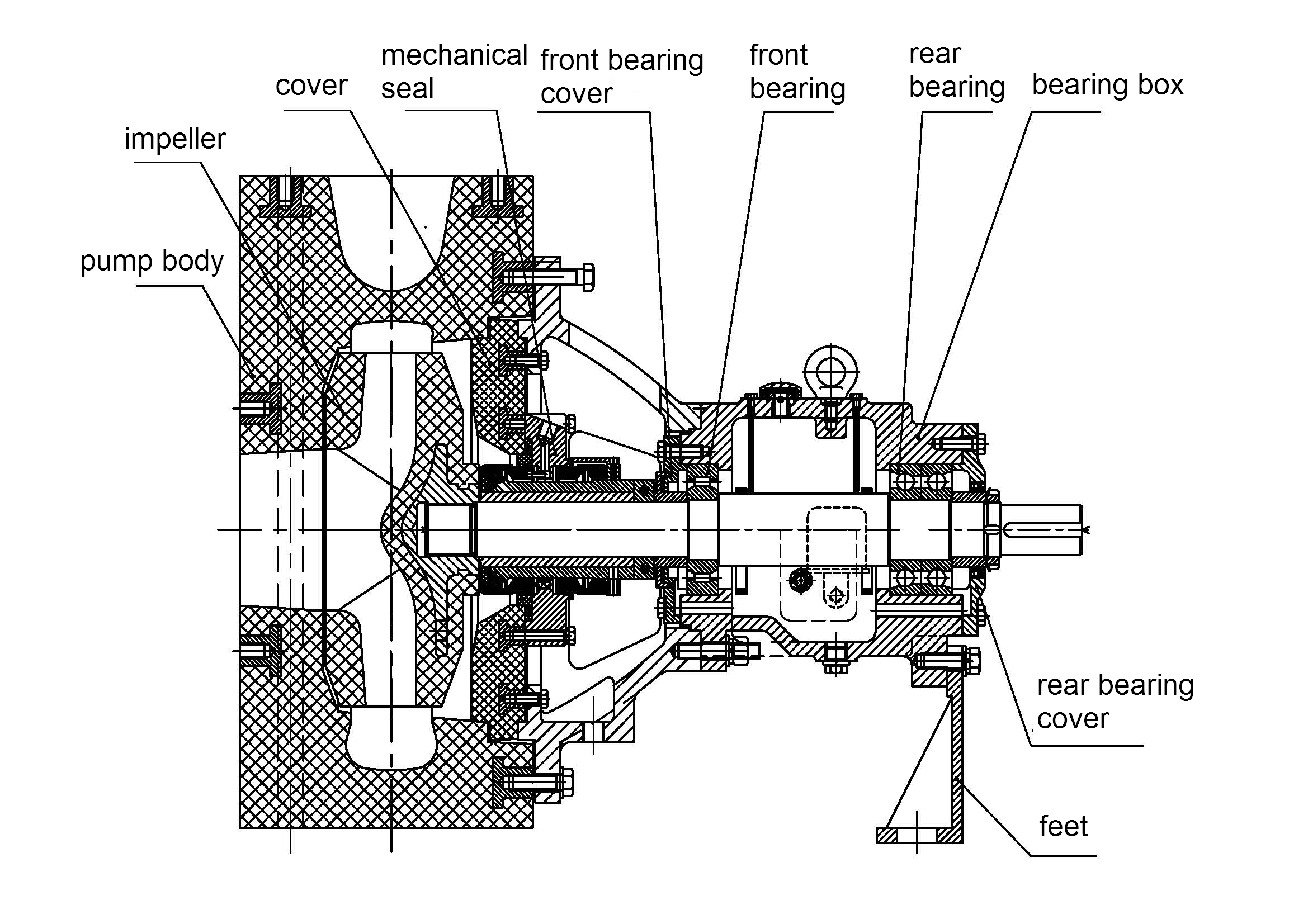

Structure

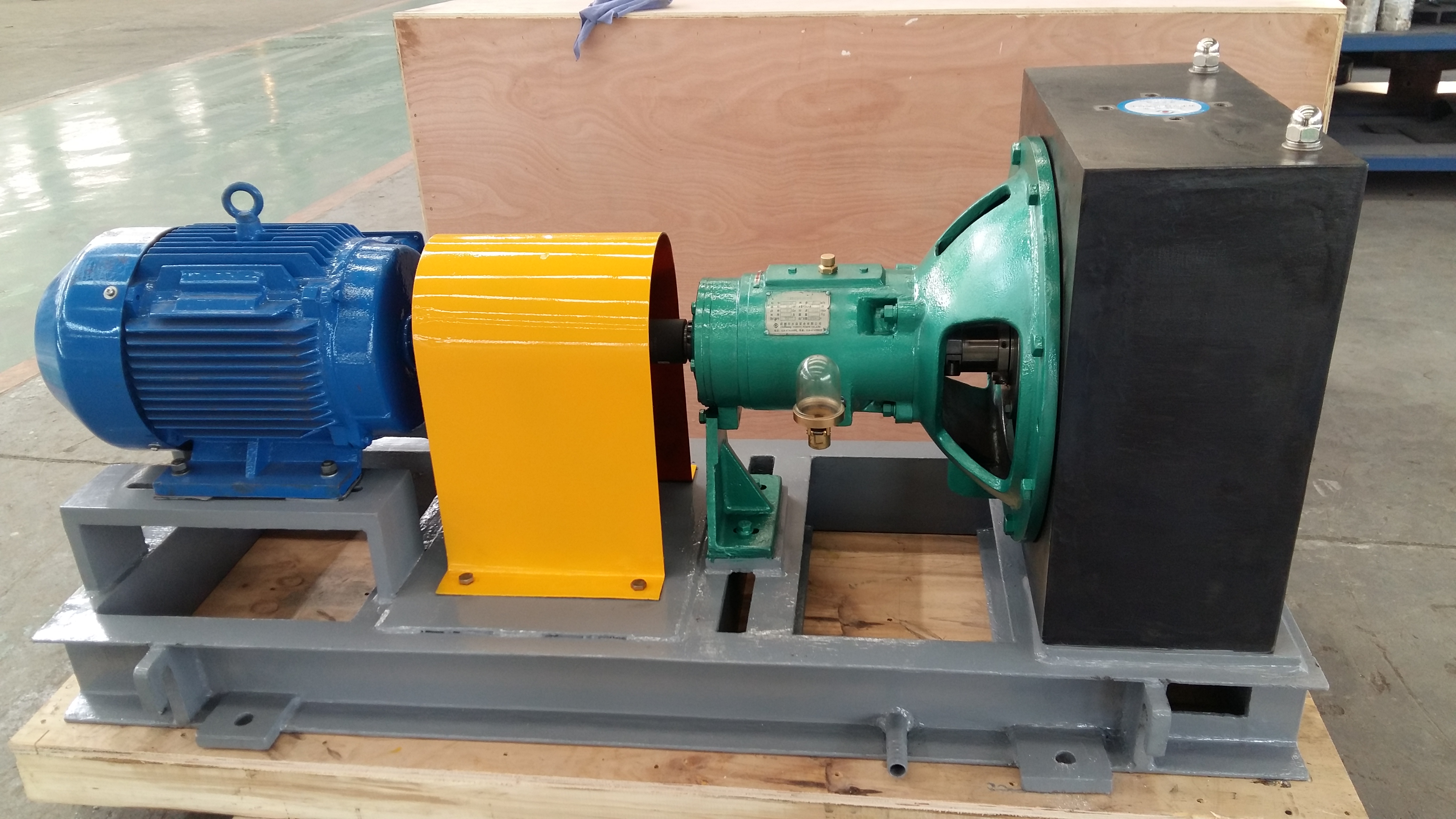

Product Picture
