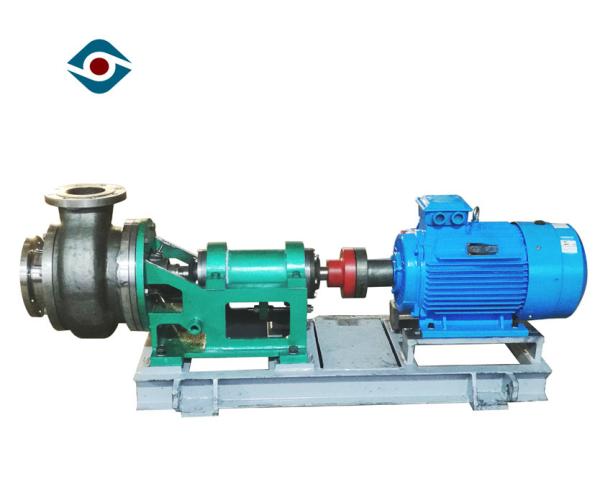

    380V Vortex Impeller Submersible Pumps , Horizontal Peripheral Chemical Pump

    380V Vortex Impeller Submersible Pumps, Horizontal Peripheral Chemical Pump

    Product Description


    XWD-series horizontal vortex pumps adopt vortex impeller and are applicable to convey corrosive liquid containing less than 45% solid particles (particle size is no more than 20mm).Its unique structure makes impeller free from being stuck because of solids and it can make flow passage components free from frequent scaling. In this way, the service life of the impeller is greatly extended and problems like short service life, frequent maintenance and high consumption are well solved.

    Structure



    1

    front cover


    8rinsing nozzle15rear bearing22bearing body bracket29O-ring
    2wear-resist plate9packing gland16rear bearing cover23front bearing30O-ring
    3impeller10front bearing cap17rear oil seal gland24framework oil seal31key
    4pump body11bearing body bracket18key25front oil seal gland32impeller nut
    5vice impeller chamber12bearing body19framework oil seal26filler33lock screw
    6vice impeller13bearing20adjustment nut27water seal ring
    7packing room14oil baffle pan21adjustment screw28sleeve

    Performance Data


    Capacity

    8~750m³/h

    Head

    15~60m

    Maximal Efficiency

    2.4m~3.3m

    NPSH

    up to 1500kg

    Pressure

    1.6MPa

    RPM

    1450r/min

    Motor Power

    250KW

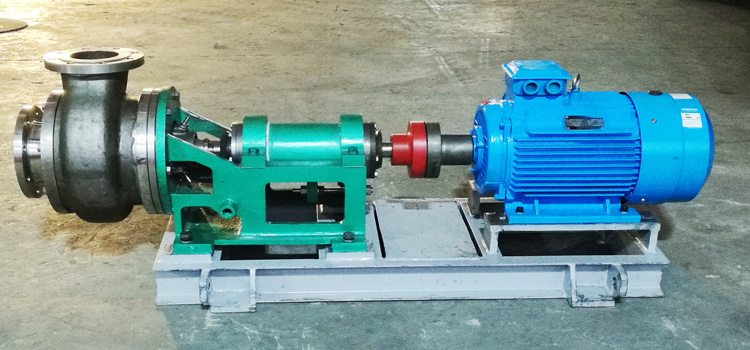

    Product Details


    Application

    In the fields of phosphorus chemical industry,petroleumindustry,coal chemical industry, paper making industry, sugar industry, pharmacy industry, chemical metallurgyand other industries, XWD-series pumps are applicable to transfer corrosive and abrasive liquid containing big particles.


    FAQ

    New Carbon Fiber Composite Material Centrifugal Chemical Pump
    1. Q: Are you a manufacturer or trading company?
    A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
    2. Q: What's your delivery time?
    A: The batch order will be shipped within 40 working days after receiving deposit.
    3. Q: What's your warranty service policy?
    A: 12 Months for all products, and some products warranty is 24months.
    4. Q: What information I need to offer for quotation?
    A: Medium: ____________ PH: ________
    Specific Gravity: _______ Temperature: _________
    Capacity/Flow: ________m3/h Head: _________m
    Voltage: ____________V Frequency: _________Hz
    Power:_____________KW

    5. Q: What is your minimum quantity?
    A: One set is also welcomed to us.
