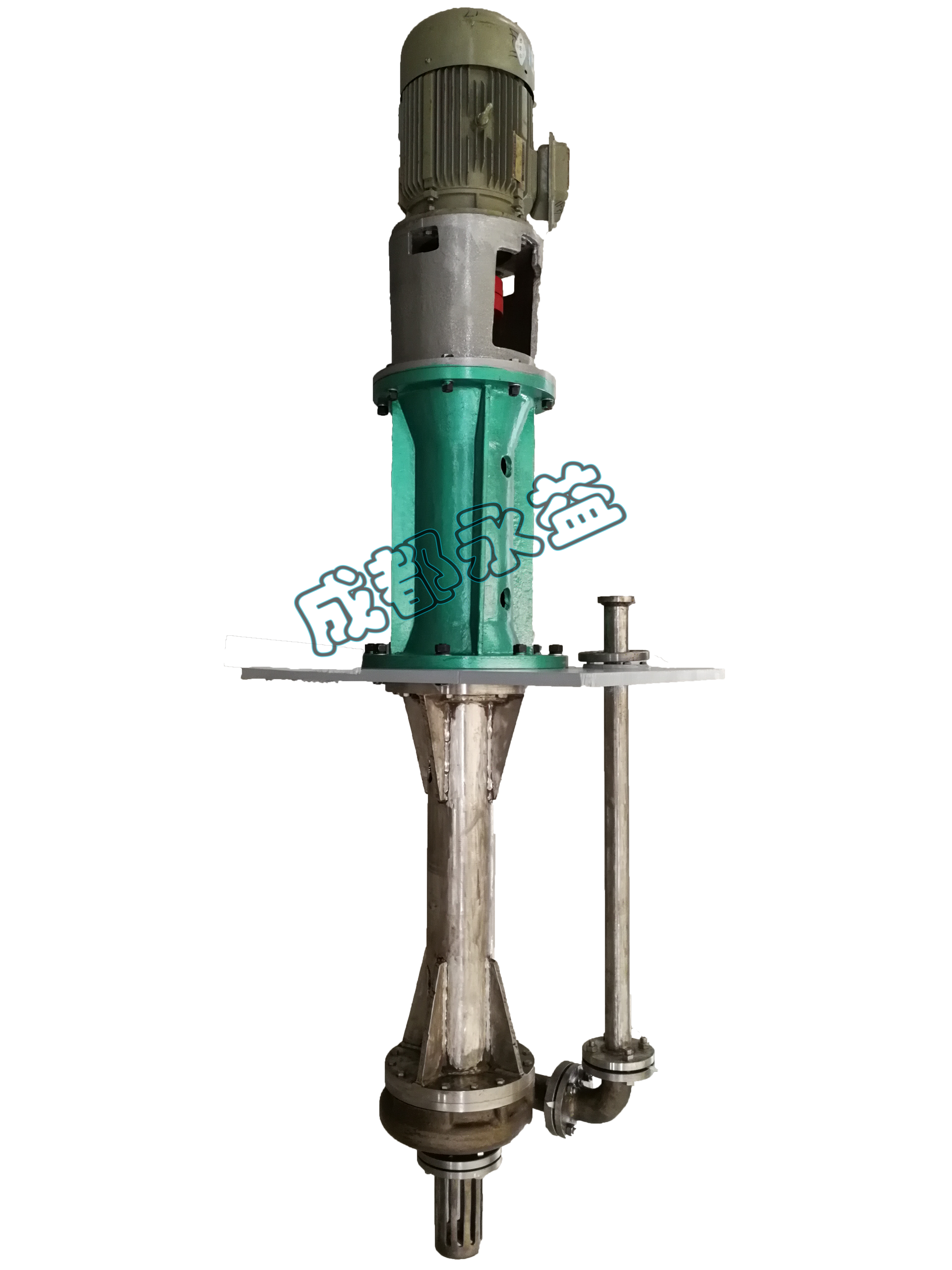

    Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant

    Ask Lasest Price
    Brand Name : Chengdu Yongyi
    Model Number : WDL
    Price : USD 500-5000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 300 sets per month
    Delivery Time : 25 working days after receiveing advance payment
    Certification : ISO9001
    • Product Details
    • Company Profile

    Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant

    China Strong Acid and Alkali Resistant Vertical Centrifugal Pump Vertical Pump Motor


    Product Description

    WDL-series pump is anti-abrasive and anti-corrosive vertical submerged centrifugal pump, which is designed according to multiphase flow theory and practice experience. WDL-series single stage single-suction pump is applicable to convey easy crystal medium containing solid particles, featured by excellent performance, advanced structure, good anti-cavitation properties, strong bearing, stable operation, easy maintenance and long service life.

    Parameter Data


    Model: WDL-series vertical centrifugal pump
    Discharge Size: 40mm~200mm
    Inlet Size: 50mm~250mm
    Capacity: 8 ~ 800 m³/h
    Head: 10 ~ 90 m
    Maximal Efficiency: 70%
    NPSH: 1.4m~4.5m
    Allowable Max Motor Power: 315 kw
    ImpellerAllowed Max Particle Size: 20 mm
    Vanes: 5/6Seal Type: /
    Type: closed/ half openPump Weight:up to 3000 kg
    Material:Metal (according to working conditions )RPM: 1450 r/min

    Structure


    1Impeller nut8Pump cover15base22framework oil seal29bearing box
    2strainer9shaft16flange23Upper shaft30O ring
    3Screw nut10Support pipe17flange24Motor base
    4key11Discharge pipe18Lower shaft25coupling
    5Pump body12spacer sleeve19oil retaining disk26key
    6impeller13framework oil seal20Shaft body27Upper shaft cover
    7elbow14Lower shaft cover21Bearing box cover28inner hexagon screw

    Application


    In the fields of chemical industry, metallurgy, power industry, paper making industry, food industry, pharmaceutical industry and synthetic fibre industry, WDL-series pumps are applicable to convey corrosive and abrasive liquid (solid content is no more than 40% ).


    FAQ


    1. Q: Are you a manufacturer or trading company?
    A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
    2. Q: What's your delivery time?
    A: The batch order will be shipped within 40 working days after receiving deposit.
    3. Q: What's your warranty service policy?
    A: 12 Months for all products, and some products warranty is 24months.
    4. Q: What information I need to offer for quotation?
    A: Medium: ____________ PH: ________
    Specific Gravity: _______ Temperature: _________
    Capacity/Flow: ________m3/h Head: _________m
    Voltage: ____________V Frequency: _________Hz
    Power:_____________KW
    5. Q: What is your minimum quantity?
    A: One set is also welcomed to us.
