    Single Stage Horizontal Axial Flow Pump , Axially Split Impeller Centrifugal Pump

    Ask Lasest Price
    Brand Name : Chengdu Yongyi
    Model Number : ZW
    Certification : ISO9001
    Price : USD 500-5000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 300 Sets/Month
    Delivery Time : 25 working days after receiveing advance payment
    • Product Details
    • Company Profile

    Single Stage Horizontal Axial Flow Pump , Axially Split Impeller Centrifugal Pump

    Single Stage Horizontal Axial Flow Pump , Axially Split Impeller Centrifugal Pump


    Product Description


    • ZW-series chemical axial flow pump is single-stage cantilever pump
    • Front-open door structure: simple and convenient for maintaining
    • Pump body: supported from its middle
    • Packing seal mechanical seal all available

    Specification Data



    Model: ZW-series horizontal axial pump
    Discharge Size: 300mm~1300mm
    Inlet Size: 300mm~1300mm
    Capacity: 800~13000 m³/h
    Head: 2~8 m
    Maximal Efficiency: 73%
    NPSH: 0m~1m
    Allowable Max Motor Power: 315 kw
    ImpellerAllowed Max Particle Size: 20 mm
    Vanes: 5/6Seal Type: mechanical seal/dynamic seal/packing seal
    Type: closed/ half openPump Weight:up to 3000kg
    Material:Metal (according to working conditions )RPM: 1450 r/min

    Technical Parameter


    ZW-series Horizontal Axial Flow Pump

    No.

    Model

    Flow

    m3/h

    Head

    m

    Rotating speed

    r/min

    Motor Power

    KW

    1

    ZW300

    800-1000

    2-8

    600-1450

    40-50

    2

    ZW350

    800-1200

    2-6

    600-1450

    40-55

    3

    ZW400

    1000-2000

    2-8

    600-1000

    45-60

    4

    ZW500

    1500-3200

    2-7

    570-980

    50-65

    5

    ZW600

    2000-3500

    2-7

    300-750

    50-65

    6

    ZW700

    3000-6000

    2-7

    300-600

    60-70

    7

    ZW760

    4000-7600

    2-6

    300-600

    60-70

    8

    ZW820

    5000-9000

    2-5

    200-500

    60-73

    9

    ZW1100

    8000-13000

    2-6.5

    200-475

    65-75

    ZL-series Vertical Axial Flow Pump

    No.

    Model

    flow

    m3/h

    Head

    m

    Rotating speed

    r/min

    Motor Power

    KW

    1

    ZL300

    500-800

    2-8

    600-1450

    40-50

    2

    ZL350

    550-1000

    2-8

    600-1450

    40-55

    3

    Zl400

    600-1600

    2-8

    600-1000

    45-60

    4

    ZL500

    1200-2200

    2-6

    570-750

    50-65

    5

    ZL600

    2000-3000

    2-6

    300-750

    50-65

    6

    ZL700

    3000-6000

    1-5

    300-600

    60-70

    7

    ZL800

    5000-9000

    1-5

    200-500

    60-73

    8

    ZL950

    6000-11000

    1-4

    200-500

    60-77

    9

    ZL1050

    8000-12000

    1-4

    100-400

    64-77

    10

    ZL1300

    9000-15000

    1-3

    100-300

    65-78


    Structure



    1

    Impeller nut

    8

    Packing room

    15

    coupling

    22

    framework oil seal

    29

    filler

    2

    Sealing cover

    9

    Bearing base

    16

    coupling

    23

    Lower bearing upper cover

    30

    sealing cover

    3

    joint

    10

    framework oil seal

    17

    motor

    24

    Lower bearing lower cover

    31

    impeller

    4

    sheath

    11

    lower bearing

    18

    round nut

    25

    Packing cover



    5

    shaft

    12

    base

    19

    upper bearing cover

    26

    nozzle



    6

    sleeve

    13

    Motor base

    20

    upper bearing

    27

    Water seal ring



    7

    Pump body

    14

    Oil pointer

    21

    Bearing case

    28

    Pump cover


    • Cantilever rotor, front opening structure, convenient maintenance without disassembling pump body and pipeline
    • The pump is supported from the middle of the pump body.
    • Packing seals and mechanical seals are available.
    • The impeller cooperates with the suction short pipe, and when the medium is abrasive, just replace the impeller and the suction short pipe, thereby improving the service life.
    • The impeller can be reversed to change the flow direction of the medium.

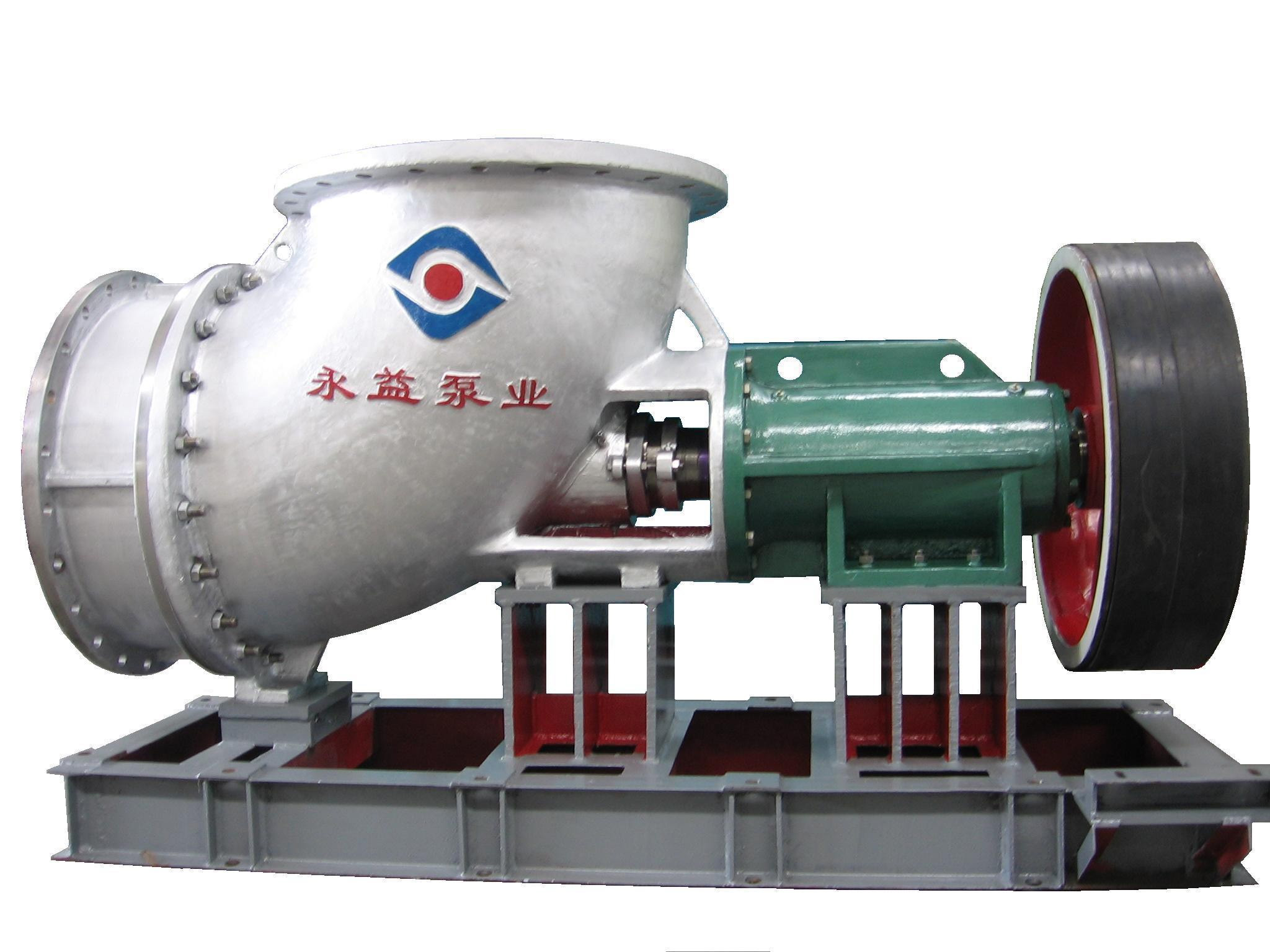

    Product Picture

    Quality Single Stage Horizontal Axial Flow Pump , Axially Split Impeller Centrifugal Pump for sale
