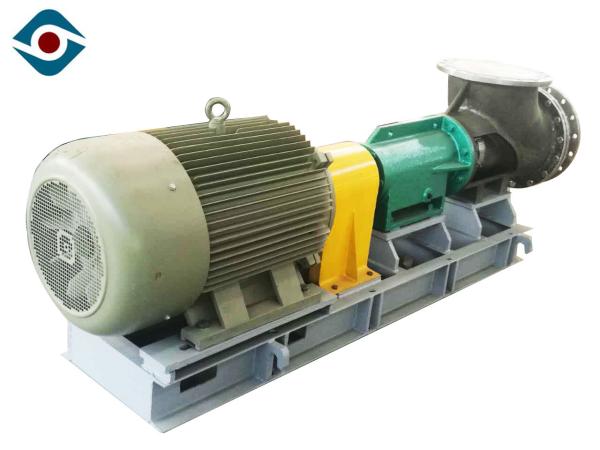

Split Case Chemical Horizontal Axial Flow Propeller Pump Wear Resistant Cast Iron

Product Desription

ZW-series chemical axial flow pump is single-stage cantilever pump. It adopts front-open door structure. This structure is very simple and convenient for maintaining, because pump body and pipeline are not needed to be disassembled. Pump body is supported from its middle; alignment of rotor is good; packing seal is adopted, when specially required, mechanical seal can be adopted for seal. Impeller and suction nozzle match very well. When transferringabrasive materials, the only thing need to do is to change impeller and suction nozzle. In this way, the service life of pump body is increased.

Product Details

• Cast-iron,duct alloy,carbon,steel,zinc free bronze,silicon brass or stainless steel construction (other materials available on request)
• High efficiency single suction impeller
• Durable, low noise, long life bearing
• Premium quality mechanical seal
• Electric drive

Technical Parameter

ZW-series Horizontal Axial Flow Pump

ZL-series Vertical Axial Flow Pump

Performance Range

Applications

For ZW-series chemical axial flow pump, design pressure is 16bar, temperature of transmission medium is ～+120℃. In compound fertilizer industry, alumina industry, chemical metallurgy industry, chemical industry, alkali, salt industry, paper industry and so on, ZW-series pump is used to transfer medium containing solid particles for large-flow, low-lift evaporation circulating station.

Features

1) Adopting excellent hydraulic model abroad and adopting advanced computer simulation analysis technology (Pro/E, CFD and other software platforms), the pump has excellent performance and high reliability and stability. It adopts foot support, cantilever rotor, excellent hydraulic structure, advanced shaft seal form, low speed type operation, not only the pump runs smoothly, but also the reliability is high. This type of pump has high efficiency, high efficiency zone and good anti-cavitation performance.

2) Fully absorb the advantages of axial flow pumps home and abroad, ZW-series axial pump has the feature of simple structure, convenient maintenance and reliable operation.

3) The material selection of the pump over-current component is reasonable. The material has long service life and meet the wear-resisting and corrosion-resistant requirements of the slurry for conveying different media conditions.

4) The shaft seal adopts two kinds of seal forms: packing seal and mechanical seal, which is convenient for the user to select the appropriate shaft seal form according to the actual situation.

FAQ


1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.

Chengdu Yongyi Pump Industry Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pumps and mixer for a wide range and variety of customers home and abroad. Chengdu Yongyi Pump Industry Co., Ltd is located in Chengdu, Sichuan province, China, about 50km to Chengdu Shuangliu International Airport and very close to China Railway Express.

Chengdu Yongyi Pump Industry Co., Ltd established in 1995, now, over 90% of our workers and engineers have many years of production experience, with production ability of 20 sets per day. They could finish the procedure of design, casting, machining, assembly and testing independently.

With main products of pumps and mixers, our products cover more than 1, 000 varieties in more than 10 series, including chemical process pump, slurry pump, vortex pump, desulfurization pump and agitators and many more. They are widely used in chemical, metallurgy, mineral, electricity, coal industry and so on.

The company has advanced design platform, using PRO / ENGINEER, SolidWorks and other three-dimensional software for product structure analysis; Has hydraulic machinery, casting and smelting, mechanical processing, heat treatment and other technical personnel, has multiple patent technologies, is a member unit of phosphorus and sulfur industry association, the key test platform and the joint base of Xihua university, has obtained the industrial design center granted by Chengdu city and high-tech enterprises in Chengdu and the big taxpayers of Chengdu Qingbaijiang district.

Through very stringent quality and enterprise audit procedure, we have passed ISO9001 international quality system authorization in 2015. Also finished Product Traceability System is adopted to ensure the product quality & production management.


Good management, cohesive team, good service system and rich experience give this company a solid foundation to continued development. New products are being on continually researched and developed to meet the demand of variable markets.

This competitive company strives forward to create value for the customers and satisfy various consumers' needs
