Horizontal Top Level Centrifugal Industrial Pump Chemical Process Pump Manufacturers

General Introduction

A chemical process pump provides transportation of liquids for the purposes of transfer through the chemical processing plant, treatment of effluent, storage, In order to prolong the service life of chemical process pump, advanced materials used to make these industrial process pumps include corrosion-resistant metallic and non-metallic materials. The chemical process pump including various types, including single-stage pump, multistage pump, submersible pump, vertical pump and positive displacement pump.Our CZ-series pump is single stage horizontal chemical process pump.

Performance Range

	Model: YCZ-series chemical process pump
	Discharge Size:20mm ~250mm
	Inlet Size:32mm~300mm
	Capacity:4~2000m³/h
	Head:2~160m
	Maximal Efficiency:65%
	NPSH:0m~3.5m
	Allowable Max Motor Power:710 kw
Impeller	Allowed Max Particle Size:20mm
Vanes: 5/6	Seal Type:mechanical seal/dynamic seal/packing seal
Type:closed/half open	Pump Weight:up to 3000kg
Material:Metal (according to working conditions )	RPM:1450r/min
Diameter: 200mm~470mm	Material of Liner: Metal (according to working conditions )

Structure

Features

♦ Mechanical seal pump: A mechanical seal provides a more secure solution and is a much more common feature in process pumps than packed glands

♦ Extra safety measures: it is technically easy and cost-efficient to add on accessories such as barrier chambers and drain channels to add an extra line of safety for the workforce and surrounding environment.

♦ There are two ways to balance the axial force of the pump: when the nominal diameter of the impeller is less than or equal to 250mm, the back blade is used to balance the force; when the nominal diameter of the impeller is larger than or equal to 315mm, the sealing ring and the balance hole are used to balance the force. The residual axial force is absorbed by a set of angular contact ball bearings.

Application

1. chemicals, petrochemical industry, metallurgy, synthetic fibre industry, pharmaceutical industry,paper making industry, air conditioning industry , sugar industry, heating industry, sea water desalination, and water supply

2. convey neutral liquid medium, corrosive liquid medium, clear liquid medium and liquid medium containing few solid particles.

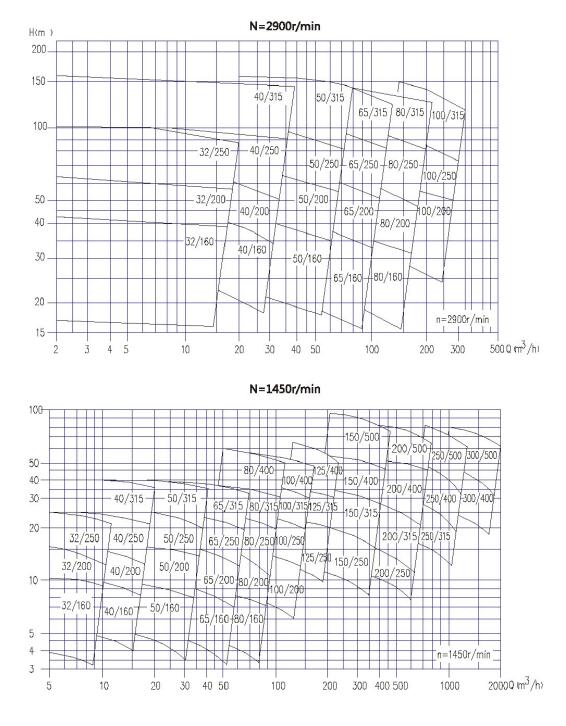

Performance Curve
