Standards No Vibration Dilute Sulfuric Acid Chemical Pump Radial Flow Pump Single Stage

    Buy cheap Standards No Vibration Dilute Sulfuric Acid Chemical Pump Radial Flow Pump Single Stage from wholesalers

    Buy cheap Standards No Vibration Dilute Sulfuric Acid Chemical Pump Radial Flow Pump Single Stage from wholesalers
    • Buy cheap Standards No Vibration Dilute Sulfuric Acid Chemical Pump Radial Flow Pump Single Stage from wholesalers
    • Buy cheap Standards No Vibration Dilute Sulfuric Acid Chemical Pump Radial Flow Pump Single Stage from wholesalers

    Standards No Vibration Dilute Sulfuric Acid Chemical Pump Radial Flow Pump Single Stage

    Ask Lasest Price
    Brand Name : Chengdu Yongyi
    Model Number : CZ
    Certification : ISO9001
    Price : USD499-6000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 300 set/month
    Delivery Time : 25 working days after receiveing advance payment
    • Product Details
    • Company Profile

    Standards No Vibration Dilute Sulfuric Acid Chemical Pump Radial Flow Pump Single Stage


    Standards No Vibration Single Stage Dilute Sulfuric Acid Chemical Pump Radial Flow Pump

    Pump Design


    Single stage, single suction horizontal cantilever centrifugal pump, packing seals or mechanical seals, with extended flexible diaphragm coupling, follow the ISO5199 and GB/T5656 standard.

    Technical Data

    Capacities:4~2000m³/h

    Heads: 2~160m

    Temperatures: -20 to +120°C

    Kinematic iscosities: 0.5 to 350 mm2/s

    Working Principle: Radial flow pump

    Stage: Single stage

    Sealing System: packing seals or mechanical seals

    Standards: ISO5199 and GB/T5656


    Construction Material


    NO.GradeCodeMediumEvaluation of Corrosion ResistanceEvaluation of Wear Resistance
    100Cr17Ni12Mo316LPhosphoric acid, dilute sulfuric acid, dilute nitric acid, organic acid, resistance to intergranular corrosion

    ☆☆☆☆☆


    ☆☆


    20Cr17Ni12Mo316Phosphoric acid, sulfuric acid, dilute nitric acid, organic acid

    ☆☆☆☆


    ☆☆


    30Cr18Ni12Mo2TiMo2TiPhosphoric acid, dilute nitric acid, organic acid☆☆☆☆☆☆
    400Cr18Ni9304LPhosphoric acid slurry, dilute nitric acid, organic acid☆☆☆☆☆
    50Cr18Ni9304Ammonium phosphate slurry, dilute nitric acid, organic acid☆☆☆☆☆
    61Cr18Ni9321HPhosphoric acid slurry, normal temperature dilute sulfuric acid, organic acid, alkali, neutral solution☆☆☆☆☆
    7

    0Cr24Ni20Mo2Cu3


    K Alloy


    ≤60°%c various concentrations of sulfuric acid, ammonium bicarbonate 70%, ammonium sulfate solution less than 40%, high temperature phosphoric acid

    ☆☆☆☆


    ☆☆☆☆


    80Cr20Ni30Mo5Cu320# AlloyHigh temperature dilute sulfuric acid, high temperature phosphoric acid, t≤130 ℃ concentration about 40%

    ☆☆☆☆☆


    ☆☆☆
    90Cr20Ni25Mo5Cu2

    904


    Various concentrations of sulfuric acid and high temperature phosphoric acid below 70 ℃

    ☆☆☆☆


    ☆☆☆
    10015Cr21Ni26Mo5Cu2904LVarious concentrations of sulfuric acid and high temperature phosphoric acid below 80 ℃

    ☆☆☆☆☆


    ☆☆


    110Cr12Ni25Mo3Cu3Si2Nb941Full concentration room temperature sulfuric acid, especially suitable for medium concentration (about 50%) sulfuric acid below 100 ℃

    ☆☆☆☆☆


    ☆☆☆
    12

    00Cr14Ni14Si4


    C4


    Full concentration nitric acid, especially suitable for concentrated nitric acid☆☆☆☆☆
    1300Cr10Ni20Mo1.5Si6CuSS920High concentration sulfuric acid, t≤130 ℃, concentration 93-98%☆☆☆☆☆☆
    140CrNi60Mo28Co3V4哈氏BBelow the boiling point Full concentration hydrochloric acid, sulfuric acid, phosphoric acid, hydrofluoric acid, non-oxidizing salts

    ☆☆☆☆☆


    ☆☆☆
    15022Cr23Ni5Mo3N2205Phosphoric acid, dilute sulfuric acid, small amount of oxygen ions, fluoride ions☆☆☆☆☆☆
    16022Cr26Ni5Cu3Mo3N2605NPhosphoric acid, dilute sulfuric acid, small amount of oxygen ions, fluoride ions

    ☆☆☆☆☆


    ☆☆☆
    17022Cr225Ni7Mo5N2507Organic acid, inorganic acid, small amount of oxygen ion, fluoride ion

    ☆☆☆☆☆


    ☆☆☆
    180Cr26Ni5Mo2Cu3CD4MCuDilute sulfuric acid, phosphoric acid, corrosive and abrasive medium

    ☆☆☆☆☆


    ☆☆☆
    190Cr28Ni1Mo5Co4V2ReF33Phosphoric acid, phosphoric acid, dilute sulfuric acid, corrosive abrasive medium☆☆☆☆☆☆☆☆
    20F30%CrMoCr30Phosphoric acid, phosphoric acid, dilute sulfuric acid, small amount of oxygen ions, fluoride ions☆☆☆

    ☆☆☆☆☆


    2106Cr30Ni2. 5Mo5CuReDTCr30Phosphoric acid extraction slurry, phosphoric acid and dilute sulfuric acid with solid particles☆☆☆☆☆☆☆☆☆
    2200C30Mo2Cr30Mo2Phosphoric acid extraction slurry, high temperature phosphoric acid and dilute sulfuric acid with solid particles

    ☆☆☆☆☆


    ☆☆☆☆
    23295Cr26NiMoA05Slurry, neutral medium☆☆

    ☆☆☆☆☆


    24

    205Cr36NiMoCu


    A33


    Slurry, weakly acidic, weakly alkaline medium

    ☆☆☆


    ☆☆☆☆


    25Carbon fiber composites materialTQ-1Corrosive and abrasive medium☆☆☆☆☆☆☆☆☆☆

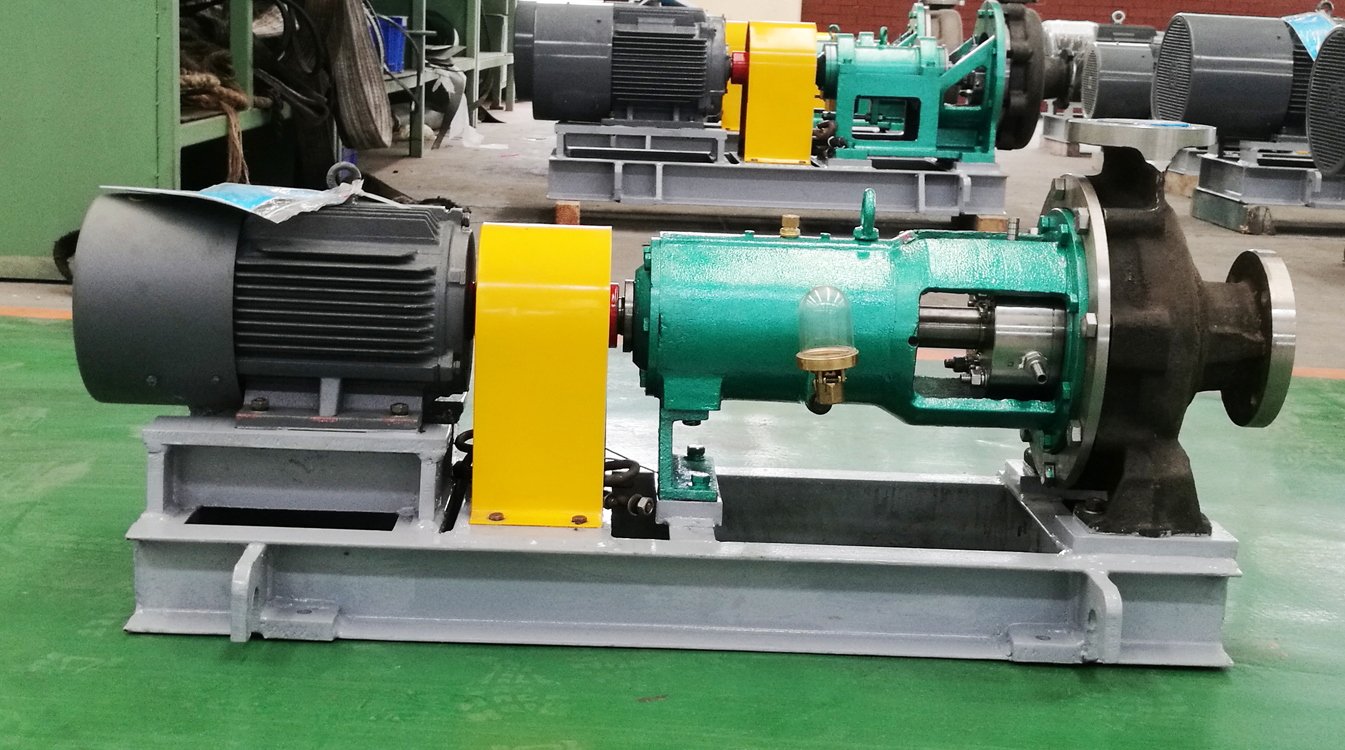

    Product Show



    Application

    Chemical Process IndustriesOrganic & Inorganic Liquids Refineries
    Fertilizer PlantsDyes & Intermediates
    Bulk Drugs And PharmaceuticalEffluent Treatment Plants
    Heating And Air Conditioning PlantsCooling Towers
    Sugar PlantFire Fighting
    Pulp And Paper, TextilePower, Steel
    Jet DyeingThermic Fluid


    Why Choose Us


    1. Yongyi’s Vision: Try our best to contribute to pump industry and the world

    2. Quality Awareness: We persevere in high quality and keeping improving

    3. Service Concept: We do not only provide products of high quality, but also high quality service

    4. Core Value: Maximize the value of products
