    Blue Heavy Duty Vertical Shaft Pump Sand Mining Pump With Support Plate

    Ask Lasest Price
    Brand Name : Chengdu Yongyi
    Model Number : ZJL
    Certification : ISO9001
    Price : USD 500-5000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 300 sets per month
    Delivery Time : 25 working days after receiveing advance payment
    • Product Details
    • Company Profile

    Blue Heavy Duty Vertical Shaft Pump Sand Mining Pump With Support Plate


    Heavy Duty Long Warranty Service Vertical Shaft Pump Sand Mining Pump with Support Plate

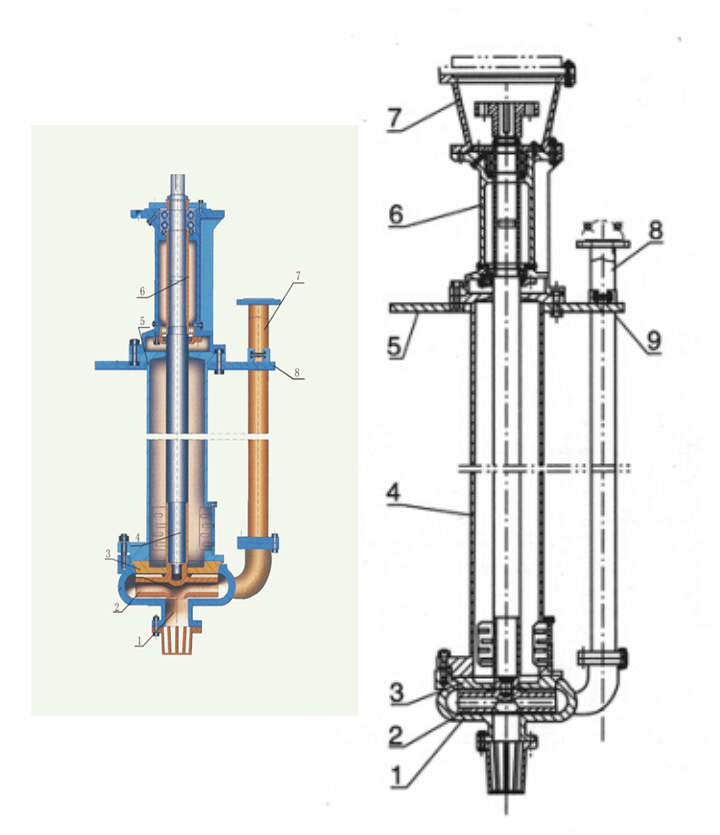

    Structure drawing



    1Volute casing2support3Motor base
    4Impeller5Left support plate6Discharge pipe
    7Rear liner plate8Bearing body9

    Right support plate


    Product Summarize


    a. ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump.


    b. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss.


    c. Geometrical shape of its flow passage components is suitable for flow condition of medium.


    d. High wear resistance, corrosion resistance and impact resistance material is used for flow passage components to improve service life.


    Parameter


    Model

    Clear Water Performance

    Rotating speed n

    Flow Q

    Head H

    Shaft power Pa

    Effectiveness η

    150ZJL-A35

    590-980

    119-364

    4.4-17.9

    3.9-15.3

    63.1-68.1

    100ZJL-A36

    970-1480

    76-239

    15.3-51.1

    9.6-32.1

    54.1-58.9

    80ZJL-A33

    970-1480

    42-157

    8.1-48.6

    8.7-33.2

    52.3-56.5

    65ZJL-A38

    970-1470

    50-120

    19.4-52.3

    6.9-28.8

    42.7-45.8

    65ZJL-A30

    960-1470

    25-98

    11.1-34.7

    2.3-13.4

    43.7-51.9

    50ZJL-A40

    970-1470

    21-65

    16.5-58.3

    5.5-22.1

    29.9-34.1

    50ZJL-A36

    970-1470

    36-85

    13.1-42.7

    4.7-20.7

    31.2-39.4

    50ZJL-A20

    910-1440

    10.8-38

    4.3-10.7

    0.4-2

    31.2-38.6

    40ZJL-A35

    970-1470

    15.8-47.6

    13.6-42.9

    3.8-14.1

    27.3-33.8

    40ZJL-A25

    910-1440

    6.6-22.9

    7.2-21.5

    0.6-2.8

    26.1-37.6

    40ZJL-A21

    910-1140

    6.0-9.5

    6.8-17

    0.4-2.6

    27.9-44.6

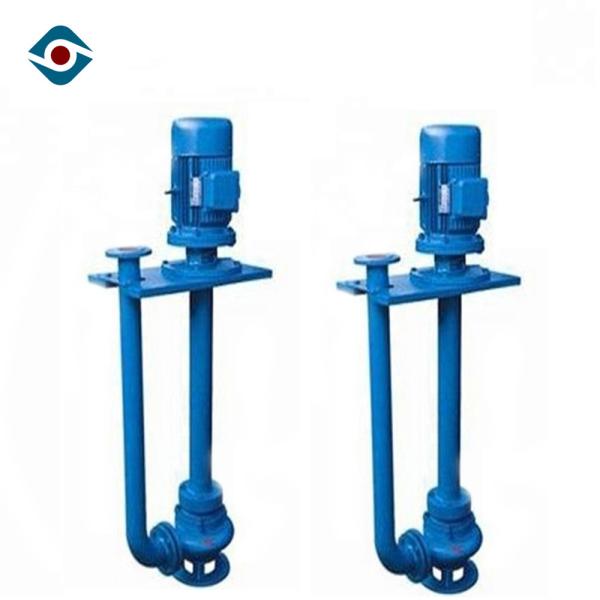

    Product Picture and Details



    Installation Drawings



    FAQ


    1. Q: Are you a manufacturer or trading company?
    A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
    2. Q: What's your delivery time?
    A: The batch order will be shipped within 40 working days after receiving deposit.
    3. Q: What's your warranty service policy?
    A: 12 Months for all products, and some products warranty is 24months.
    4. Q: What information I need to offer for quotation?
    A: Medium: ____________ PH: ________
    Specific Gravity: _______ Temperature: _________
    Capacity/Flow: ________m3/h Head: _________m
    Voltage: ____________V Frequency: _________Hz
    Power:_____________KW
    5. Q: What is your minimum quantity?
    A: One set is also welcomed to us.
