    Abrasive Vertical Slurry Pump Suction Sludge Dredge Underwater Long Warranty Service

    Ask Lasest Price
    Brand Name : Chengdu Yongyi
    Model Number : ZJL
    Certification : ISO9001
    Price : USD 500-5000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 300 sets per month
    Delivery Time : 25 working days after receiveing advance payment
    • Product Details
    • Company Profile

    Abrasive Vertical Slurry Pump Suction Sludge Dredge Underwater Long Warranty Service


    Abrasive Slurry Pump Suction Sludge Dredge Underwater Vertical Slurry Pumps


    Product Description


    ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced. High-chrome alloy, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage components to improve service life.


    Main Usage


    · Mining

    · Civil Construction

    · Industry

    · Coal Preperation

    · Mineral Processing

    · Chemical Precessing


    Product Features


    1 Flow passage components:this type of pump use wear resistant metal, impeller choose wear resistant metal or rubber.

    2 Bearing components:we use grease lubrication. According to slag slurry pool liquid height, can choose different lengths of pump shaft or suction pipe.

    3 Sealing:Doesn't need any shaft seal or shaft seal water. In suction volume insufficient condition also can work normally below.


    Technical Parameter



    Model


    Clear Water Performance

    Supporting motor


    Rotating speed

    n

    Flow

    Q

    Head

    H

    Shaft power

    Pa

    effectiveness

    η

    r/min(m³/h)mkw%

    150ZJL-A35


    980

    19817.915.363.1

    Y250M-6 V1

    380V 37kw

    33213.217.568.1
    36412.118.066.8

    730

    14710.06.363.1

    Y200L-8 V1

    380V 15kw

    2477.37.268.1
    2716.77.466.8

    590

    1196.53.363.1

    Y160L-10 V1

    380V 11kw

    2004.83.868.1
    2194.43.966.8

    100ZJL-A36


    1480

    11351.132.154.1

    Y250M-4 V1

    380V 55kw

    18542.239.458.9
    23934.145 .154.2

    970

    7622.99.654.1

    Y200L1-6 V1

    380V 18.5kw

    12418.911.858.9
    16015.313.554.2

    80ZJL-A33


    1480

    10046.826.852.6

    Y225M-4 V1

    380V 45kw

    14141.631.056.5
    15736.533.252.3

    970

    4216.85.552.6

    Y180L-6 V1

    380V 15kw

    9412.47.156.5
    1228.48.752.3

    65ZJL-A38


    1470

    7552.323.142.7

    Y225S-4 V1

    380V 37kw

    9745.826.445.8
    12043.428.845.6

    970

    5023.46.942.7

    Y180L-6 V1

    380V 15kw

    6520.57.945.8
    8019.48.645.6

    65ZJL-A30


    1470

    3834.78.243.7

    Y180M-4 V1

    380V 18.5kw

    5831.99.751.9
    9826.013.451.7

    960

    2514.82.343.7

    Y132M2-6 V1

    380V 5.5kw

    3813.62.751.9
    6411.13.751.7

    50ZJL-A40


    1470

    3158.316.529.9

    Y200L-4 V1

    380V 30kw

    475119.134.1
    6537.922.130.3

    970

    2125.44.929.9

    Y160L-6 V1

    380V 11kw

    3122.25.534.1
    4316.56.430.3

    50ZJL-A36


    1470

    3642.715.731.2

    Y200L-4 V1

    380V 30kw

    6337.818.739.4
    8529.320.733.5

    970

    2419.14.731.2

    Y160L-6 V1

    380V 11kw

    4216.95.639.4
    5713.16.233.5

    50ZJL-A20



    1440

    17.110.71.434.9

    Y112M-4 V1

    380V 4kw

    24.79.21.638.6
    38.06.02.031.2

    910

    10.84.30.434.9

    Y90L-6 V1

    380V 1.1kw

    15.63.70.438.6
    24.02.40.531.2

    40ZJL-A35



    1470

    23.742.912.827.3

    Y180L-4 V1

    380V 22kw

    42.334.313.733.8
    47.630.514.128.1

    970

    15.819.23.827.3

    Y160M-6 V1

    380V 7.5kw

    28.315.34.133.8
    31.813.64.228.1

    40ZJL-A25



    1440

    10.121.52.326.1

    Y132S-4 V1

    380V 5.5kw

    18.419.02.636.6
    22.916.82.837.6

    910

    6.69.20.626.1

    Y90L-6 V1

    380V 1.1kw

    128.10.736.6
    14.97.20.737.6

    40ZJL-A21



    1440

    9.517.01.627.9

    Y112M-4 V1

    380V 4.0kw

    20.315.32.042.4
    25.914.12.244.6

    910

    6.06.80.427.9

    Y90L-6 V1

    380V 1.1kw

    12.86.10.542.4
    16.45.60.644.6

    Structure



    1Volute casing2support3Motor base
    4Impeller5Left support plate6Discharge pipe
    7Rear liner plate8Bearing body9Right support plate

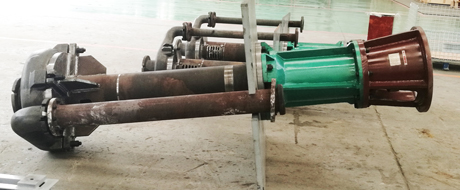

    Product Picture


    Installation Dimension
